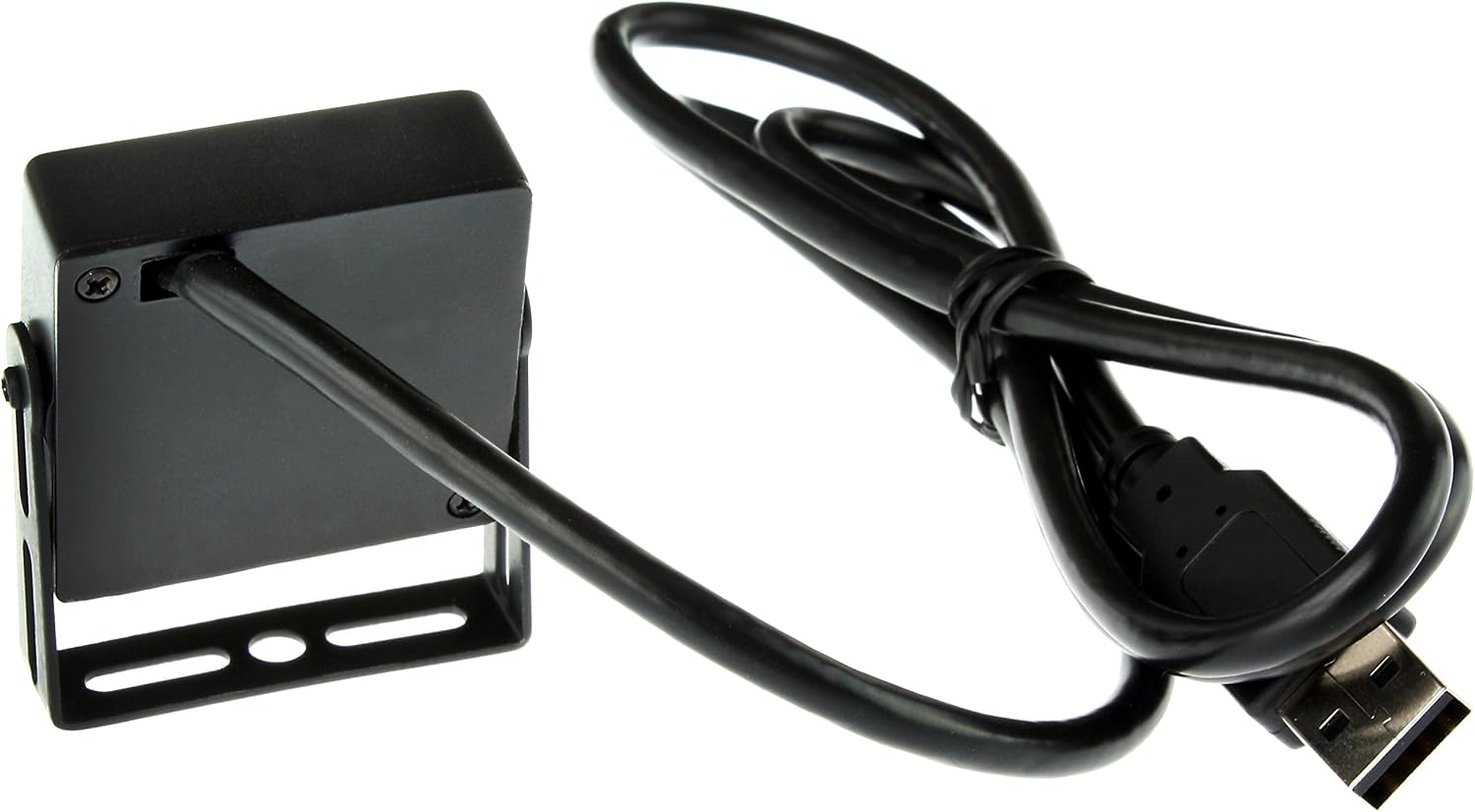

ELP 3.7mm Mini Pinhole USB Camera for Computer 1.3megapixel 960P Low Light PC Camera with Metal Case 0.01lux HD Webcam for Laptop UVC Industrial Medical Raspberry Pi Open CV Webcamera
Product details
| Management number | 228849156 | Release Date | 2026/05/31 | List Price | US$18.00 | Model Number | 228849156 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ELP HD 1.3Megapixel USB camera(model: ELP-USB130W01MT serials) adopt AR0130 HD sensor,can work with IR Cut, good to use at night, And it has been widely used in Linux equiped, or those equiped which come with linux?wince?Android prototype system etc. Sensor:AR0130 1/3 CMOS Sensor Picture format "YUY2 and MJPEG optional"/USB Protocal USB2.0 HS/FS Auto exposure AEC Support/Auto white blance AEB Support Effective Pixels: 1280(H)X960(V)/1280 (H) x 720 (V) pixels/960 (H) x 720 (V) pixels 800 (H) x 600 (V) pixels/640 (H) x 480 (V) pixels Performance: 1280 (H) x 960(V) pixels MJPEG 15fps YUY2 8fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps 960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps Adjustable parameters: Brightness/Contrast/Color saturation /Definition/Gamma/WB Night vision optional, can support IR Cut and IR board for IR night vision. Voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)/Size 32x32mm Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
- 0.01lux Low illumination: low light performance---ideal for any lighting condition,can be clear visible in dim light.
- HD 3.7mm Pinhole M12 lens,mini black box metal housing,CMOS AR0130 sensor for high quality image and low pow consumption,1.3MP 960P High pixel technology for sharp image and accurate color reproduction.Max Resolution:1280 (H) x 960(V).
- High Frame Rate: deliver 30fps in 1280*720 resolution,good for high speed moving object capturing.Super small outline and thin profile for embedded applications.
- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device with the included USB cable without extra drivers to be installed.Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
- UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.High speed USB 2.0 interface for high resolution PC camera interface.Low power consumption – ideal for portable equipment.
| UPC | 767550330772 |
|---|---|
| ASIN | B01N0BTM99 |
| Zoom | Digital |
| Brand | ELP |
| Color | Black |
| Features | Lightweight |
| Lens Type | Zoom |
| Focus Type | Auto Focus |
| Model Name | ELP-USB130W01MT |
| Style Name | Modern |
| Unit Count | 1 Count |
| File Format | M-JPEG |
| Form Factor | Compact |
| Screen Size | 3.2 Inches |
| Sensor Type | CMOS |
| Manufacturer | Ailipu Technology Co., Ltd |
| Model Number | ELP-USB130W01MT-PL37 |
| BuiltIn Media | USB Cable |
| Viewing Angle | 60 Degrees |
| Camcorder Type | Webcam |
| Shooting Modes | Night |
| Antenna Location | Camera,Laptop |
| Maximum Aperture | 2 f |
| Minimum Aperture | 3.7 Millimeters |
| Operating System | Linux |
| Video Resolution | 960p |
| Flash Memory Type | Micro SD |
| Photo Sensor Size | 1/3-inch |
| Compatible Devices | Personal Computer |
| Image Aspect Ratio | 16:9 |
| Maximum Focal Length | 300000 Millimeters |
| Minimum Focal Length | 3.7 Millimeters |
| Video Capture Format | MJPEG |
| Warranty Description | 30days free return and replacements |
| Wireless Compability | Infrared |
| Compatible Processors | UVC compliant processors |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Image Format | MJPEG, YUY2 |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Upper Temperature Rating | 70 Degrees Celsius |
| Item Dimensions D x W x H | 1.26"D x 1.26"W x 0.15"H |
| Display Resolution Maximum | 960p HD |
| Effective Video Resolution | 1280 Pixels |
| Flash Memory Video Speed Class | V10 |
